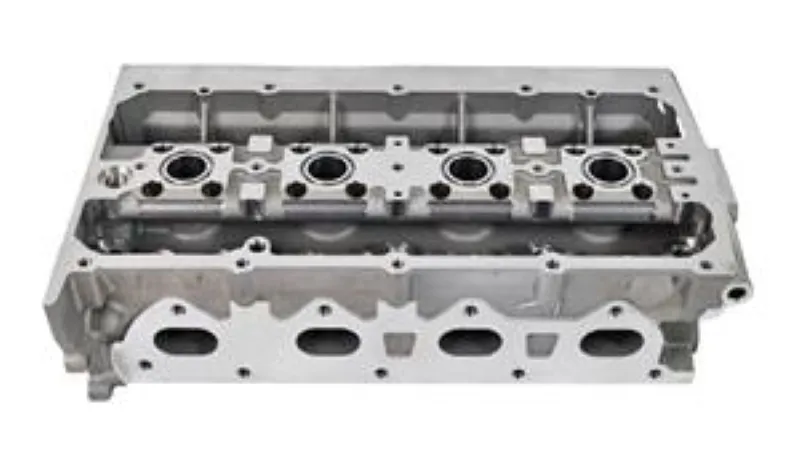

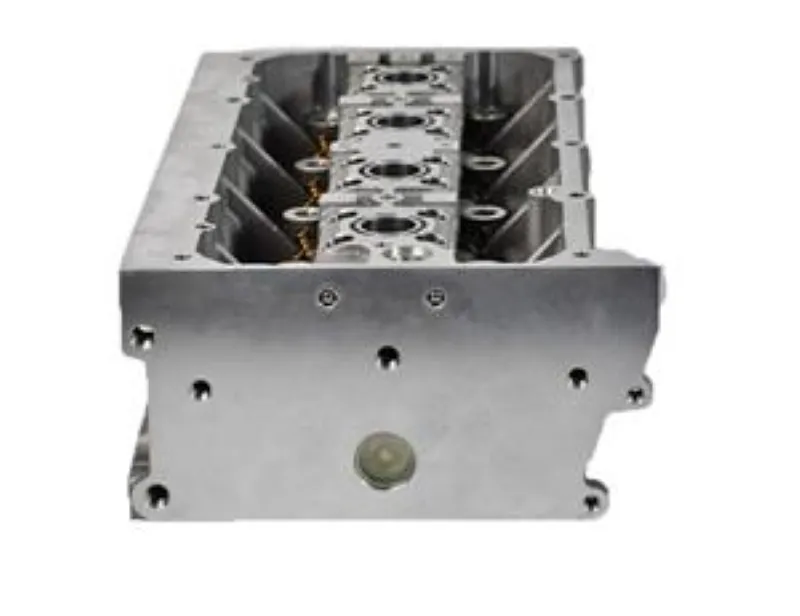

Auto Engine Block 5-axis CNC Machining

5-Axis CNC Machining Process and Material Characteristics for Engine Cylinder Blocks:

1. Processing Characteristics

--5-axis CNC machining offers significant advantages in engine cylinder block manufacturing:

--Multiple surface machining can be completed simultaneously, reducing clamping times (conventional 3-axis machining requires multiple clamping times).

--Complex curved surface machining is possible (such as cylinder bore chamfers and bearing oil grooves).

--Surface roughness can reach Ra0.4μm, meeting high-precision requirements.

2. Typical Machining Processes

--Key processes in 5-axis engine block machining include:

3. Crankshaft Bore Machining:

--Semi-finishing Boring (Aluminum Alloy Parts)

--Fine Boring to Determine Axial Width (Cast Iron Parts)

4. Cylinder Bore Machining:

--Rough Boring → Fine Boring → Internal Chamfering (Aluminum Alloy Parts)

5. Surface Machining:

--Rough Milling → Fine Milling of Top and Bottom Faces/Front and Rear Faces (Aluminum Alloy Parts)

6. Bearing Surface Machining:

--Fine Boring → Oil Groove Machining (Cast Iron Parts)

Product attributes

CNC workshop

CNC workshop

CNC workshop

CNC workshop

CNC workshop

CNC workshop

Tolerances for CNC Milling

What is five-axis machining?

Five-axis machining is a CNC machine tool processing mode that achieves high-precision cutting of complex surfaces through the simultaneous control of three linear axes (X, Y, Z) and any two rotating axes (A, B, C) for a total of five axes. Its core feature is that the tool or workpiece can be adjusted at any angle in space, allowing for multi-faceted processing without the need for multiple setups.

Configuration of the axes in five-axis machines:

1. Linear axes: X (left-right), Y (front-back), Z (up-down), responsible for basic positioning;

2. Rotating axes:

-- A axis: rotates around the X axis (tilting the tool);

-- B axis: rotates around the Y axis (common in head-swinging machines);

-- C axis: rotates around the Z axis (worktable rotation);

Typical combinations include XYZ AB, XYZ AC, etc.;Core advantages of five-axis machining:

1. Complex surface machining: can complete multi-angle cutting of irregular parts such as turbine blades and propellers in one go;

2. High precision and efficiency: achieves precision up to ±0.005mm by correcting the tool tip trajectory through RTCP (Rotary Tool Center Point) function;

3. Reduced setup times: avoids repeated positioning errors and improves surface quality (e.g., Ra 0.4 μm);

Mechanical structure types of five-axis machines:

1. Dual-head type: the tool rotates around two axes, suitable for processing large workpieces;

2. Dual-rotary table type: the workpiece table has dual rotating axes, suitable for medium and small precision parts;

3. Hybrid type: combines head-swinging and rotary table, providing greater flexibility;Typical application fields:

-- Aerospace: engine blades, fuselage structural parts;

-- Medical devices: artificial joints, dental implants;

-- Mould manufacturing: automotive body panels moulds, injection moulds;
