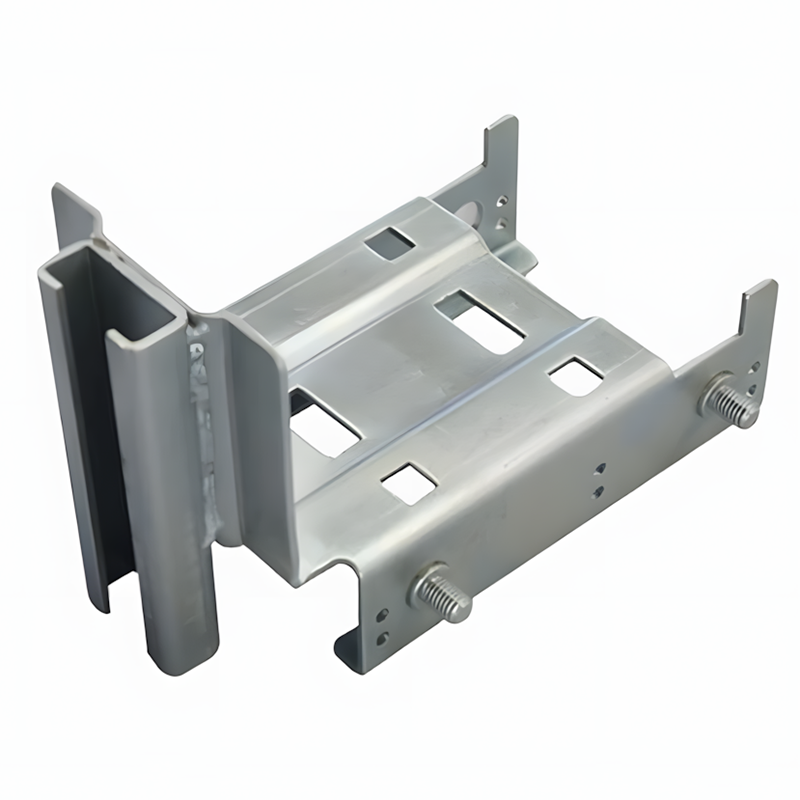

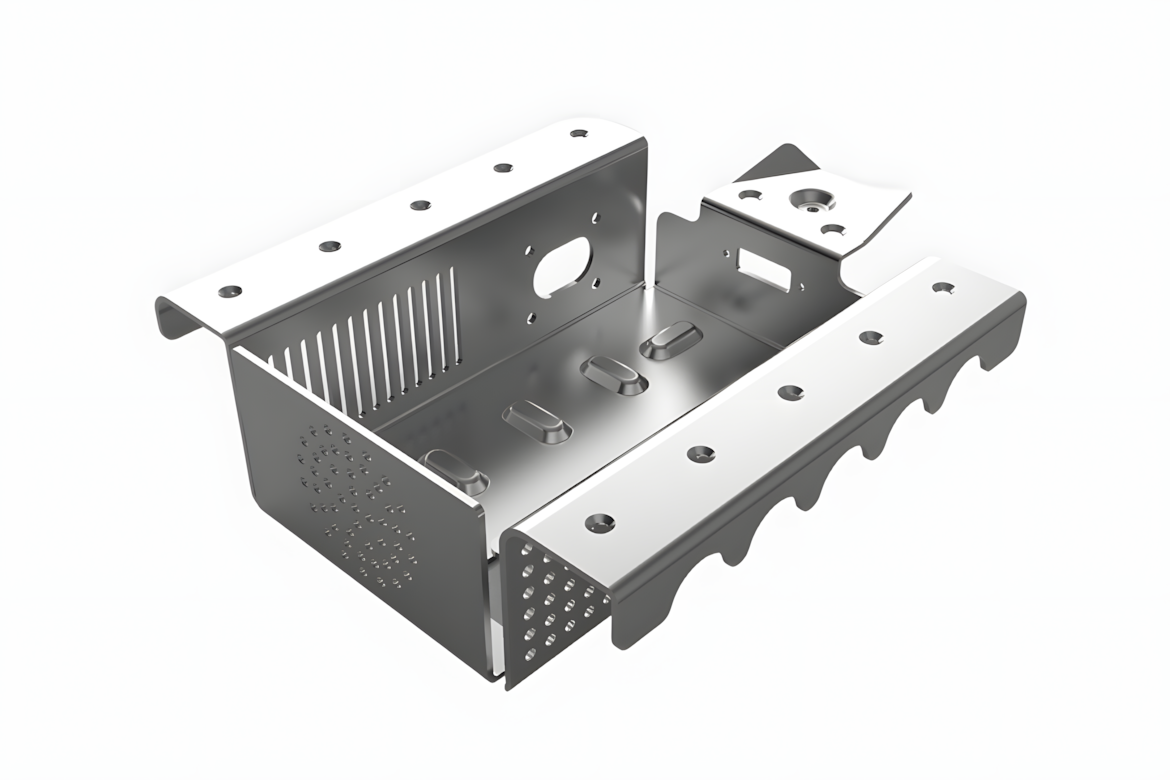

Sheet Metal Processing Technology and Process for Automated Equipment Housings：
1. Core Processing Technology
--Laser Cutting: Utilizes a 3kW fiber laser for precise cutting, achieving a cutting accuracy of ±0.1mm, suitable for materials such as stainless steel and aluminum alloys.
--CNC Bending: 200-ton press brakes support bends up to 4 meters long, enabling multi-pass custom-shaped forming of 6mm steel plates.
--Pressure Riveting: Automated pressure riveting ensures strong connections, suitable for load-bearing structures such as cabinet frames.
2. Typical Process Flow
--Material Pretreatment: Fully automatic deburring machines provide brushed polishing to enhance the surface quality of stainless steel.
--Precision Forming: CNC press brakes achieve complex angle control (±0.5° accuracy).
--Automated Welding: Robotic welding systems ensure weld strength, with a flatness tolerance of ≤0.05mm.
--Surface Treatment: Powder coating enhances weather resistance of equipment housings, maintaining a long-lasting, like-new finish.
3. Industry Application Cases
--Energy Storage Device Housing: Vertical Machining Center Enables Processing of Ultra-Large Components (6m x 3m x 2m)
--Automated Cabinet: Laser Cutting and Riveting Combine to Achieve High-Precision Housing Manufacturing
--Medical Device Housing: 304 Stainless Steel Laser Cutting, Bending, and Welding to Meet Medical-Grade Cleanroom Requirements
4. Quality Inspection Standards
--Coordinate Measurement: Verifies Mounting Surface Flatness to 0.05mm
--Film Thickness Testing: Post-Spray Coating Thickness Controlled to 30-80μm
--Pore Detection: Permanent Magnet Contact with a Magnetic Switch Determines the Acceptability of Sheet Metal Holes
Our processing capabilities
As an excellent custom sheet metal manufacturer, we have the following advantages. Explore different sheet metal fabrication solutions based on advanced manufacturing capabilities to meet your custom metal fabrication needs.
Laser Cutting
Our laser cutting technology ensures precision, clean edges, and minimal waste for intricate designs and tight tolerances.
Metal Bending
We provide metal bending services with advanced machinery to shape metals without compromising structural integrity.
Stamping
Our sheet metal stamping shapes metal into precise forms, perfect for large quantities of identical, high-quality parts.
Our Advantages
Experienced Fabricator
Drawing on decades of experience, we provide high-quality sheet metal fabrication services that meet industry standards.
In-House Equipment
Our factory utilizes advanced technology, ensuring faster production and enhanced quality control for every project.
Quality Inspection
We ensure quality by inspecting each component to ensure it meets customer specifications before it leaves our factory.
Sheet Metal Expertise
Work with our engineers for design advice, manufacturability insights, and cost-saving tips.
Our sheet metal factory
Available Materials for Sheet Metal Fabrication
Here is a list of our standard available metals for sheet metal fabrication. If you require a custom material please contact us via email.
| Material | Subtypes |
|---|---|
| Aluminum | Aluminum 5052, Aluminum 5083, Aluminum 5754 |
| Copper | Copper C101, Copper C103, Copper C110, Copper C260 (Brass) |
| Stainless Steel | 301, 304, 316, 316L |
| Steel | SPCC, Galvanized Steel (SGCC / SECC), Q235, Steel 1020 |
| Equipment | Brand | Quantity |
|---|---|---|
| CNC Laser Cutting Machine | Mitsubishi ML3015SR-f20ML3015GX-F40 | 3 |
| CNC Laser Cutting Machine | Mitsubishi ML3015eX | 3 |
| CNC Laser Cutting Machine | BaiChao DiNeng 3000W | 4 |
| CNC Bending Machine | Amada RG80 | 5 |
| CNC Bending Machine | Tongyang APB-3613WU | 2 |
| CNC Bending Machine | Tongyang HYB-6020 | 3 |
| CNC Bending Machine | Tongyang APB-5620WU | 4 |
| CNC Bending Machine | Osmar OSM 0G-60III | 6 |
| 600T Press | Yihui YHA4-600T | 3 |
| 400T Press | Y34-400T | 4 |
| 300T Press | Yihui YH-300T | 3 |
| 160T Press | Shengze SJ-160T | 5 |
| 100T Press | Shengze SJ-100T | 5 |
| 250T Stamping Machine | Xieyi SN2-250 | 5 |
| 110T Stamping Machine | Jinfeng COP-110N | 10 |
| 80T Stamping Machine | Xieyi SN1-80 | 5 |
| 618 Riveting Machine | Haeger-618PLUS-H | 15 |
| 617 Riveting Machine | HAIGEH 617 | 10 |
| 416 Riveting Machine | Haeger-416-220 | 5 |
| Handheld Laser Welding Machine | Fenghuo WSM-400 | 2 |
| Welding Machine | Yili NBC315 | 3 |
Tolerances for Sheet Metal Fabrication Services
Listed below are the standard tolerances achieved for parts produced by our in-house sheet metal factories.
| Feature | Tolerance |
|---|---|
| Cutting feature | From ±0.002" (0.05 mm) |
| Bend angle | From ±1.0° |
| Bend to edge | From ±0.004" (0.1mm) |
Sheet Metal Fabrication is a comprehensive cold processing process for metal sheets (usually less than 6mm), including shearing, punching/cutting/compositing, folding, riveting, splicing, forming (such as automobile bodies), etc. Its distinctive feature is that the thickness of the same part is consistent.
MoreSheet metal components are light in weight, small in processing volume, easy to cut and weld, and can manufacture large and complex components with standardized shapes for easy automatic processing.
MoreSheet metal processing has been widely used in electronic appliances, communications, automotive industry, medical equipment and other fields. For example, in computer cases, mobile phones, and MP3 players, sheet metal components is an essential component.
