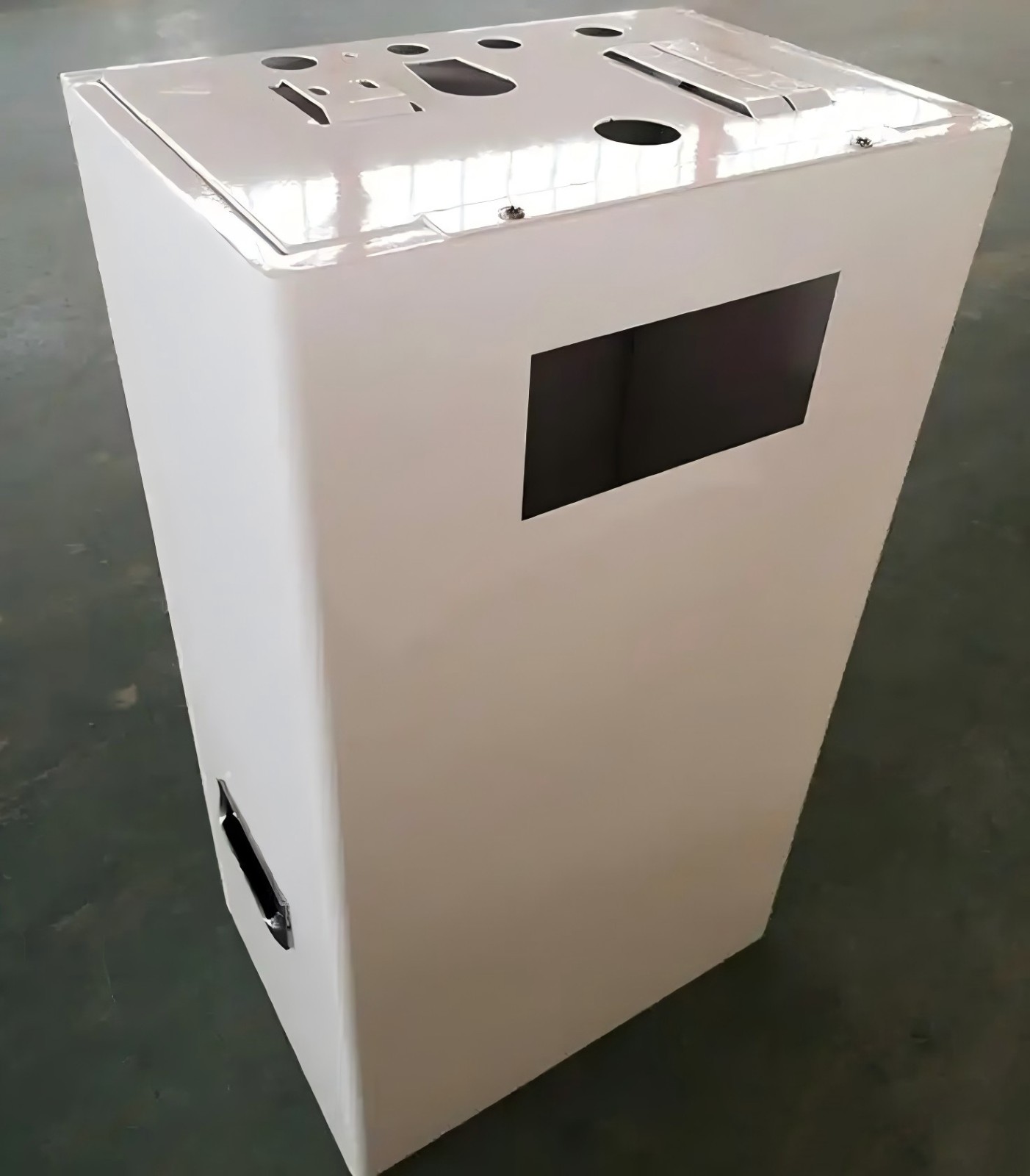

Chassis and Cabinet Sheet Metal Fabrication Process:
1. Basic Process Flow
--Design Phase: Use software such as SolidWorks/AutoCAD to complete 3D modeling. Consider factors such as heat dissipation hole locations and load-bearing structures.
--Cutting Process: Laser cutting achieves an accuracy of ±0.1mm. CNC punching is suitable for batch hole processing, and shearing machines are used for straight-line cutting.
--Bending: A 200-ton servo press brake can process 6mm steel plates. Pay attention to the bending sequence (large angles first, then small angles) and mold selection (notch width ≥ 6 times the plate thickness).
--Welding and Assembly: Argon arc welding is used for stainless steel, and CO₂ shielded welding is used for carbon steel. Post-weld polishing is required.
--Surface Treatment: Powder coating (30-80μm film thickness) or brushed/mirror polishing. Must pass a 1000-hour salt spray test.
2. Key Process Highlights
--Precision Control: Coordinate measuring machines check dimensional tolerances (±0.05mm), and X-ray inspections check weld quality.
--Material Selection: 304 stainless steel (1.0-1.5mm) for food equipment, galvanized steel (0.6-1.0mm) for cost-effective products.
Special Processes:
--Laser welding technology achieves 1500MPa high-strength structural components.
--CNC dispensing replaces traditional sealing strips, improving waterproof and dustproof performance.
--UV flatbed printing enables personalized logo design.
3. Quality Inspection Standards
Dimensional Inspection: Key hole accuracy ±0.05mm, flatness ≤0.5mm/m
Strength Testing: Load-bearing test must reach 1.5 times the design load
Environmental Testing: IP54 protection rating (dust and water resistance)
Surface Inspection: Color difference ΔE ≤ 1.5, adhesion test (cross-cut method)

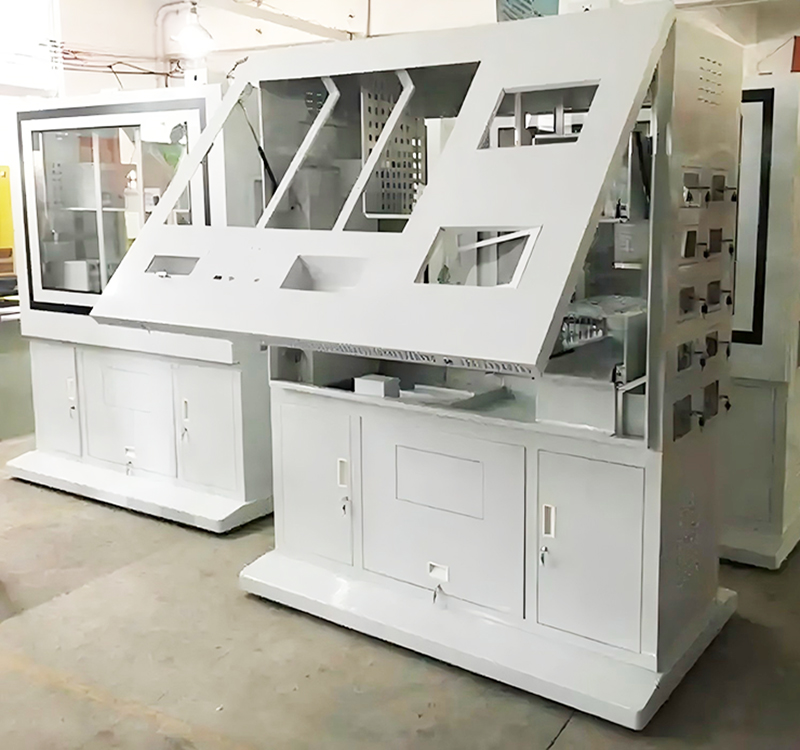

4. Typical Application Cases

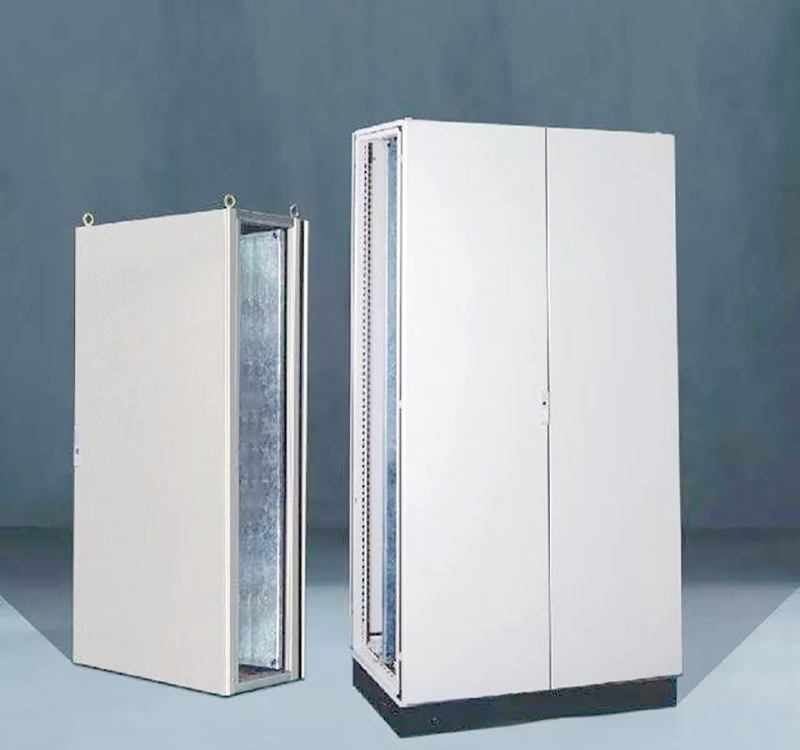

Server Cabinet: 1.2mm cold-rolled steel, bent and powder-coated
Power Control Cabinet: 2.0mm galvanized steel, welded, must pass EMC testing
Medical Equipment Cabinet: 304 stainless steel, laser-cut, mirror-polished
Our processing capabilities
As an excellent custom sheet metal manufacturer, we have the following advantages. Explore different sheet metal fabrication solutions based on advanced manufacturing capabilities to meet your custom metal fabrication needs.
Laser Cutting
Our laser cutting technology ensures precision, clean edges, and minimal waste for intricate designs and tight tolerances.
Metal Bending
We provide metal bending services with advanced machinery to shape metals without compromising structural integrity.
Stamping
Our sheet metal stamping shapes metal into precise forms, perfect for large quantities of identical, high-quality parts.
Our Advantages
Experienced Fabricator
Drawing on decades of experience, we provide high-quality sheet metal fabrication services that meet industry standards.
In-House Equipment
Our factory utilizes advanced technology, ensuring faster production and enhanced quality control for every project.
Quality Inspection
We ensure quality by inspecting each component to ensure it meets customer specifications before it leaves our factory.
Sheet Metal Expertise
Work with our engineers for design advice, manufacturability insights, and cost-saving tips.
Our sheet metal factory
Available Materials for Sheet Metal Fabrication
Here is a list of our standard available metals for sheet metal fabrication. If you require a custom material please contact us via email.
| Material | Subtypes |
|---|---|
| Aluminum | Aluminum 5052, Aluminum 5083, Aluminum 5754 |
| Copper | Copper C101, Copper C103, Copper C110, Copper C260 (Brass) |
| Stainless Steel | 301, 304, 316, 316L |
| Steel | SPCC, Galvanized Steel (SGCC / SECC), Q235, Steel 1020 |
Our Sheet Metal Processing Equipment List
| Equipment | Brand | Quantity |
|---|---|---|
| CNC Laser Cutting Machine | Mitsubishi ML3015SR-f20ML3015GX-F40 | 3 |
| CNC Laser Cutting Machine | Mitsubishi ML3015eX | 3 |
| CNC Laser Cutting Machine | BaiChao DiNeng 3000W | 4 |
| CNC Bending Machine | Amada RG80 | 5 |
| CNC Bending Machine | Tongyang APB-3613WU | 2 |
| CNC Bending Machine | Tongyang HYB-6020 | 3 |
| CNC Bending Machine | Tongyang APB-5620WU | 4 |
| CNC Bending Machine | Osmar OSM 0G-60III | 6 |
| 600T Press | Yihui YHA4-600T | 3 |
| 400T Press | Y34-400T | 4 |
| 300T Press | Yihui YH-300T | 3 |
| 160T Press | Shengze SJ-160T | 5 |
| 100T Press | Shengze SJ-100T | 5 |
| 250T Stamping Machine | Xieyi SN2-250 | 5 |
| 110T Stamping Machine | Jinfeng COP-110N | 10 |
| 80T Stamping Machine | Xieyi SN1-80 | 5 |
| 618 Riveting Machine | Haeger-618PLUS-H | 15 |
| 617 Riveting Machine | HAIGEH 617 | 10 |
| 416 Riveting Machine | Haeger-416-220 | 5 |
| Handheld Laser Welding Machine | Fenghuo WSM-400 | 2 |
| Welding Machine | Yili NBC315 | 3 |
Tolerances for Sheet Metal Fabrication Services
Listed below are the standard tolerances achieved for parts produced by our in-house sheet metal factories.
| Feature | Tolerance |
|---|---|
| Cutting feature | From ±0.002" (0.05 mm) |
| Bend angle | From ±1.0° |
| Bend to edge | From ±0.004" (0.1mm) |
Sheet metal components are light in weight, small in processing volume, easy to cut and weld, and can manufacture large and complex components with standardized shapes for easy automatic processing.
MoreSheet metal processing has been widely used in electronic appliances, communications, automotive industry, medical equipment and other fields. For example, in computer cases, mobile phones, and MP3 players, sheet metal components is an essential component.
MoreSheet Metal Fabrication Services Custom sheet metal fabrication services using advanced technology for prototyping or large-scale production. Partner with us for efficient, cost-effective, and reliable solutions today! Post-processing options such as annealing, powder coating, etc. Over 30 metals Free quoting and design feedback
