Rapid CNC Prototyping Technology Analysis
1. Technical Features and Advantages
--High-Precision Machining: CNC machines can achieve machining accuracy of ±0.01mm, making them suitable for industrial prototypes with stringent dimensional tolerances.
--Material Diversity: Supports materials such as metals (aluminum, stainless steel) and engineering plastics (ABS, POM), resulting in molded parts with higher density than 3D printing.
--Surface Quality: Through precision milling and polishing, a finish of Ra 0.8μm can be achieved directly, without the need for post-processing.
2. Application Scenarios
--Functional Verification: Suitable for components subject to mechanical loads (such as gears and housings).
--Small-Batch Production: The cost per part is lower than open-mold injection molding, making it suitable for orders of less than 50 pieces.
3. Comparison with Traditional Processes
--Compared to 3D Printing: CNC machining offers higher strength (e.g., aluminum alloys have a tensile strength of 300MPa), but cannot directly produce complex internal structures.
--Compared to 3D Printing: Injection Molding: No molds are required, shortening development cycles by 70%, but the cost per part is higher than 3D printing.
4. Operational Process Optimization
--Automated Programming: CAM software automatically generates toolpaths, reducing manual intervention (e.g., PowerMill).
--Quick Changeover: A modular fixture system reduces mold changeover time to under 15 minutes.
5. Industry Applications
--Medical Devices: Prototyping titanium alloy surgical instruments, biocompatible according to ISO 13485 standards.
--Automotive Parts: Aluminum alloy suspension brackets, reducing weight by 30% while maintaining structural strength.

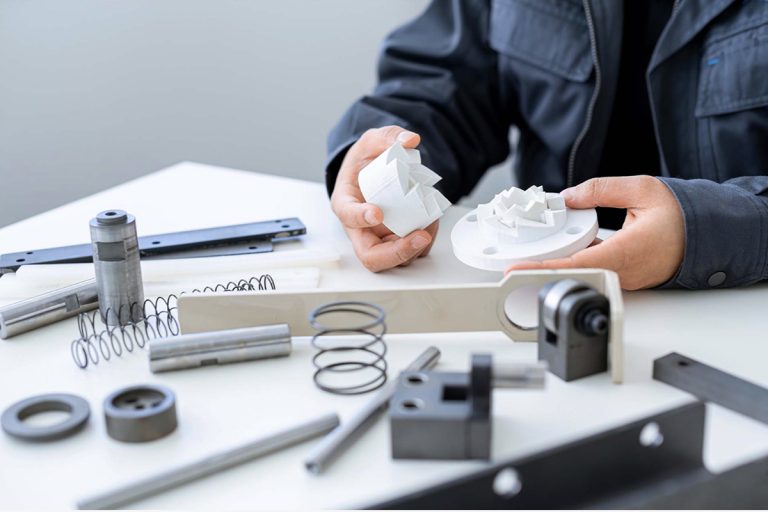

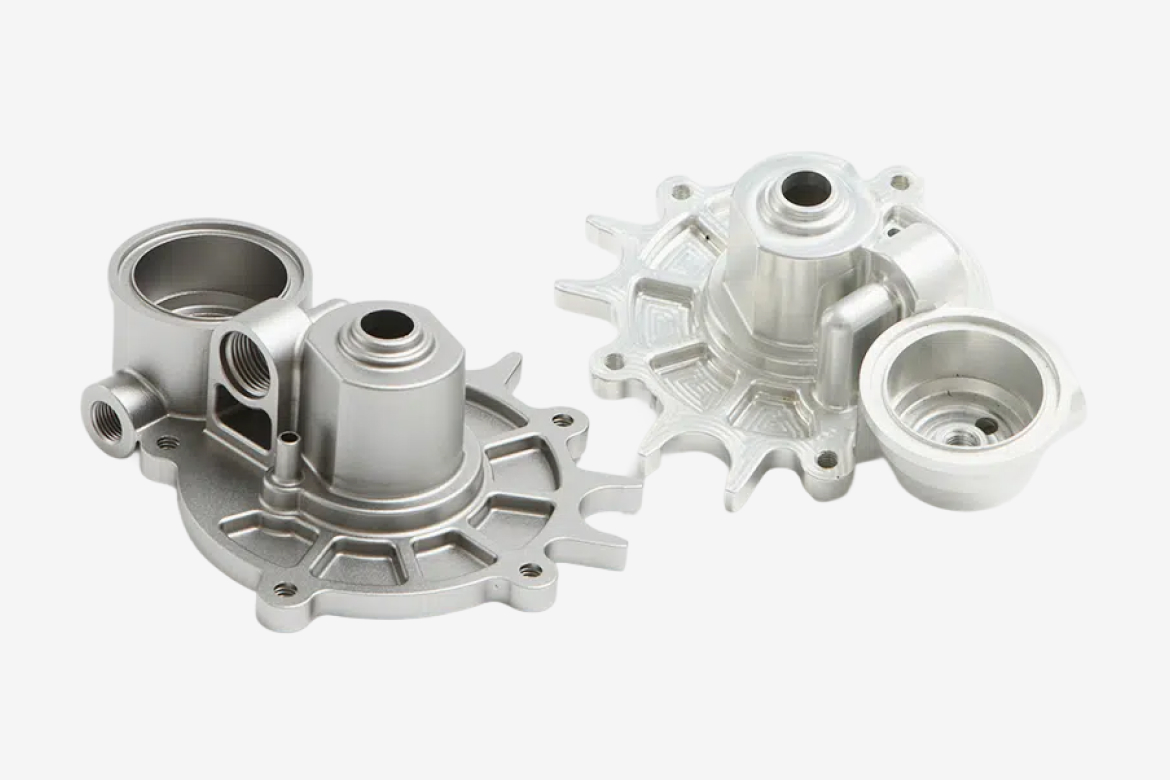

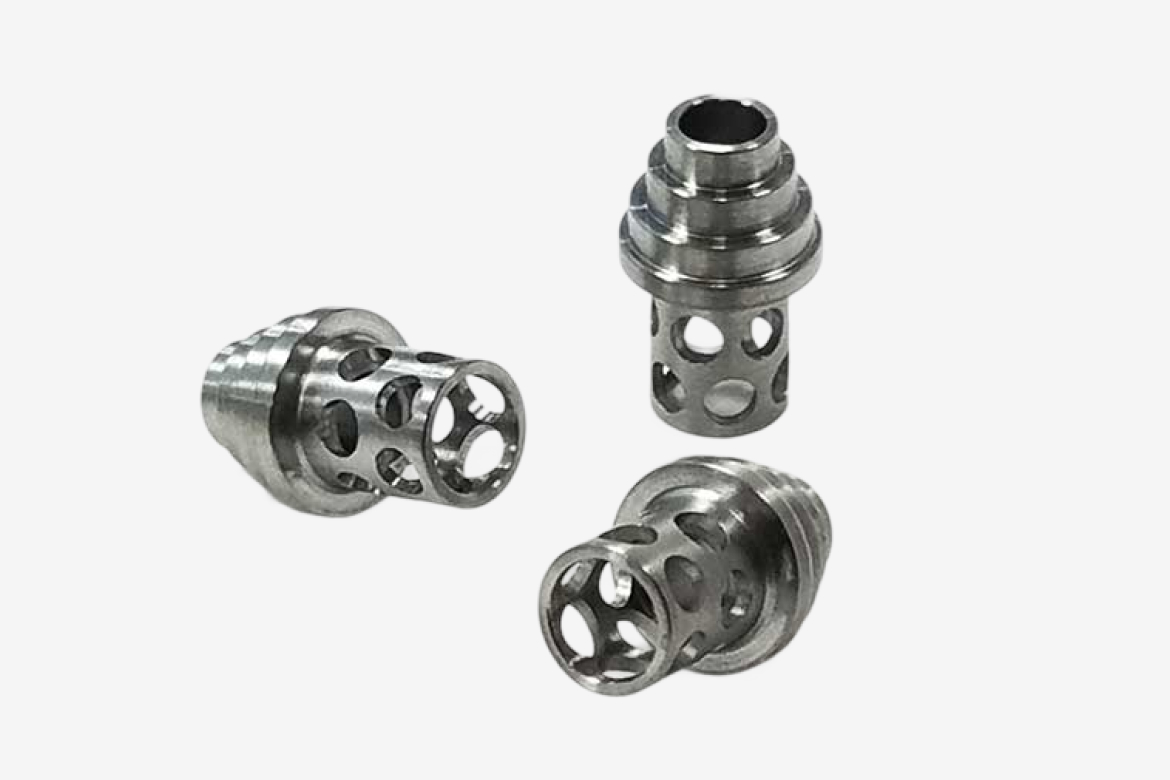

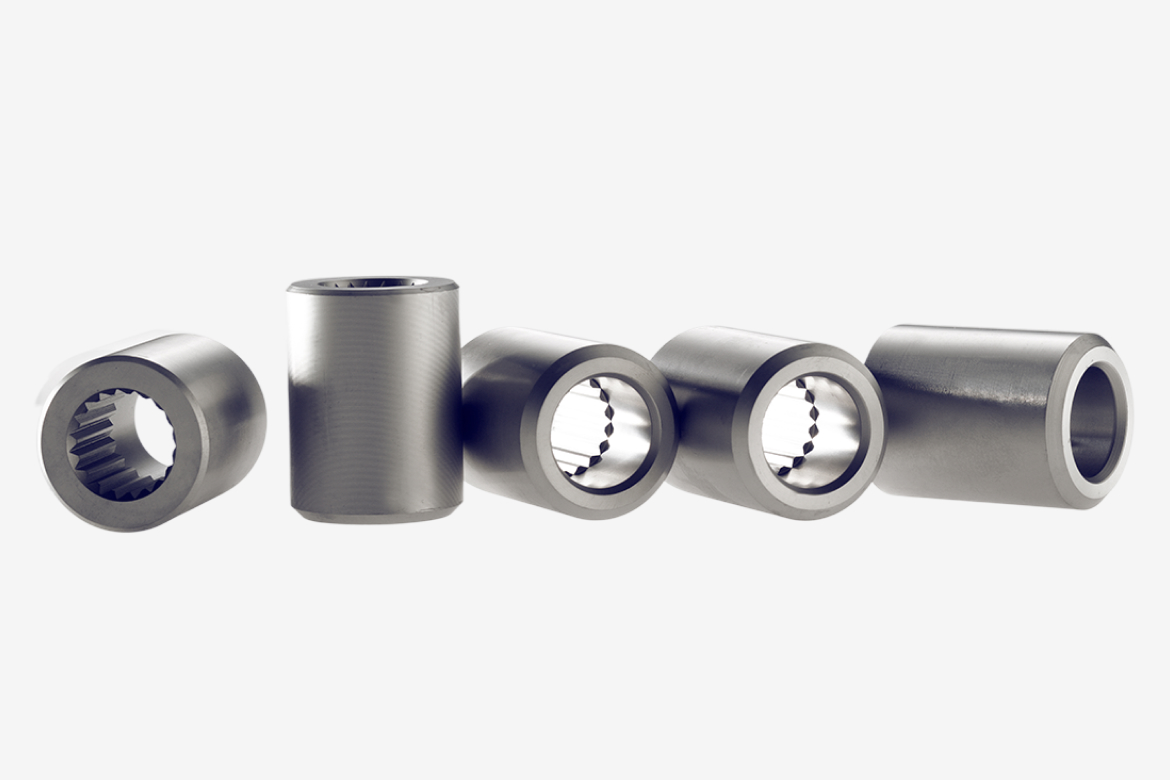

Rapid Prototyping Parts

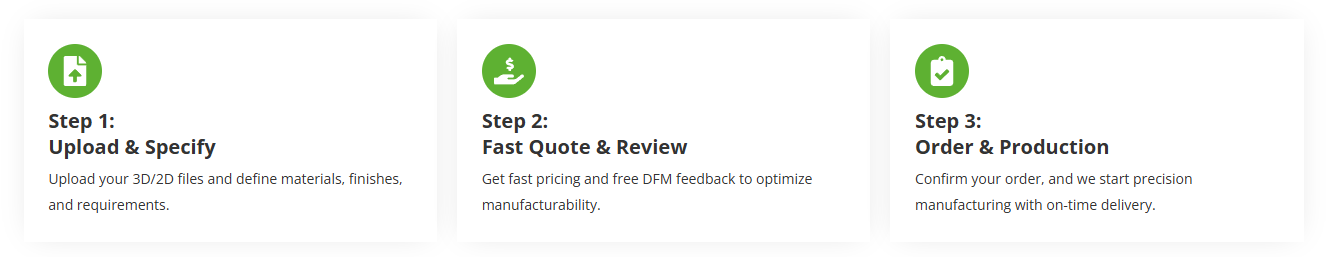

Rapid Prototyping Process:
Experience an efficient journey from design to prototype with our simplified process, and obtain high-quality parts quickly and precisely;
Our Rapid Prototyping Technology
Our rapid prototyping integrates advanced manufacturing technologies to turn designs into high-quality prototypes quickly and efficiently. By leveraging cutting-edge equipment and diverse processes, we ensure precision, material versatility, and fast turnaround times.
Key technologies we use:
--CNC Machining – High-precision milling and turning for metal and plastic prototypes.
--3D Printing – SLA, SLS, MJF, and SLM for fast, detailed parts.
--Vacuum Casting – Ideal for small-batch plastic prototypes with injection-molded quality.
--Sheet Metal Fabrication – Quick production of metal enclosures and structural parts.
--Our facilities feature industrial 3D printers, multi-axis CNC machines, and advanced molding systems, ensuring exceptional accuracy and repeatability.
Choose Our Rapid Prototyping Services
1. Technology Type and Applications
--SLA (Stereolithography)
Suitable for high-precision, high-surface-finish prototypes, such as medical models or complex structural parts, with an accuracy of ±0.05mm.
--SLS (Selective Laser Sintering)
Suitable for functional prototypes and small-batch production. Made of nylon or metal powder, it offers mechanical strength similar to injection molding.
--FDM (Fused Deposition Modeling)
Low-cost, suitable for rapid design concept verification, but with lower accuracy and strength (±0.5mm).
2. Key Considerations
--Precision Requirement: SLA and SLS are suitable for micron-level precision, while FDM is suitable for lower-precision requirements.
--Material Properties: SLS's nylon material is suitable for mechanical testing, while SLA resin is suitable for visual verification.
--Cost and Speed: FDM offers the lowest cost, while SLA and SLS are suitable for high-value prototypes.
CS Proto’s Rapid prototyping transforms early-stage designs into physical models, enabling fast, cost-effective testing and iteration. This process accelerates product development, minimizes risks, and ensures design feasibility before mass production. Fast Turnaround – Get prototypes in 1-3 days. Multiple Technologies – 3D printing, CNC machining, and more. Refined Design – Test, iterate, and improve efficiently. Lower Costs – Catch design flaws early, avoiding expensive changes later.
MoreRapid Sheet Metal Prototyping Services Sheet metal fabrication is ideal for quickly prototyping flat metal parts, delivering functional prototypes in two days or less. It provides a cost-effective way to test multiple designs simultaneously. While 5052 aluminum is a common choice, steel, copper, and stainless steel are also available. With us, you receive expert craftsmanship and an efficient process, ensuring high-quality prototypes are delivered to tight deadlines. Our rapid metal prototyping services guarantee precision, reliability, and fast turnaround times, ensuring your project runs smoothly.
MoreRapid Vacuum Casting Prototyping Services Vacuum casting is ideal for producing high-quality plastic prototypes with fine details and textures, closely resembling injection-molded parts. It's a cost-effective solution for small to medium-volume production and is ideal for functional testing and proof-of-concept. By choosing us, you'll benefit from our streamlined vacuum casting process, which offers a wide selection of materials and finishes. Our expertise ensures fast delivery times and high-fidelity replicas, accelerating product development without compromising quality.
More
